-10%

Corvette Cross Drilled/Slotted 2 pc. Rotors & Calipers - AP Racing Radi-Cal : C7 Z06

Corvette Cross Drilled/Slotted 2 pc. Rotors & Calipers - AP Racing Radi-Cal : C7 Z06

Name: Corvette Cross Drilled/Slotted 2 pc. Rotors & Calipers - AP Racing Radi-Cal : C7 Z06
Brand: Stillen
SKU: 2411
Price: 3149.0 USD
Availability: InStock

Corvette Cross Drilled/Slotted 2 pc. Rotors & Calipers - AP Racing Radi-Cal : C7 Z06

See all reviews

$3,149.00

Options

(2) Rear 4-Piston (Forged) BLACK (2) Front 6-Piston (Forged) RED (2) Rear 4-Piston (Forged) RED (2) Front 6-Piston (Forged) BLACK

Product variants

Oversize Shipping $80 at Checkout

Availability: Usually Ships In 3-5 Days Brand: Stillen SKU: 2411

Payment Methods:

Description

Choose Front or Rear rotors.
The highest performing brake rotors available.
Every AP Racing Radi-CAL big brake kit comes with everything you need to complete the installation.

Including:

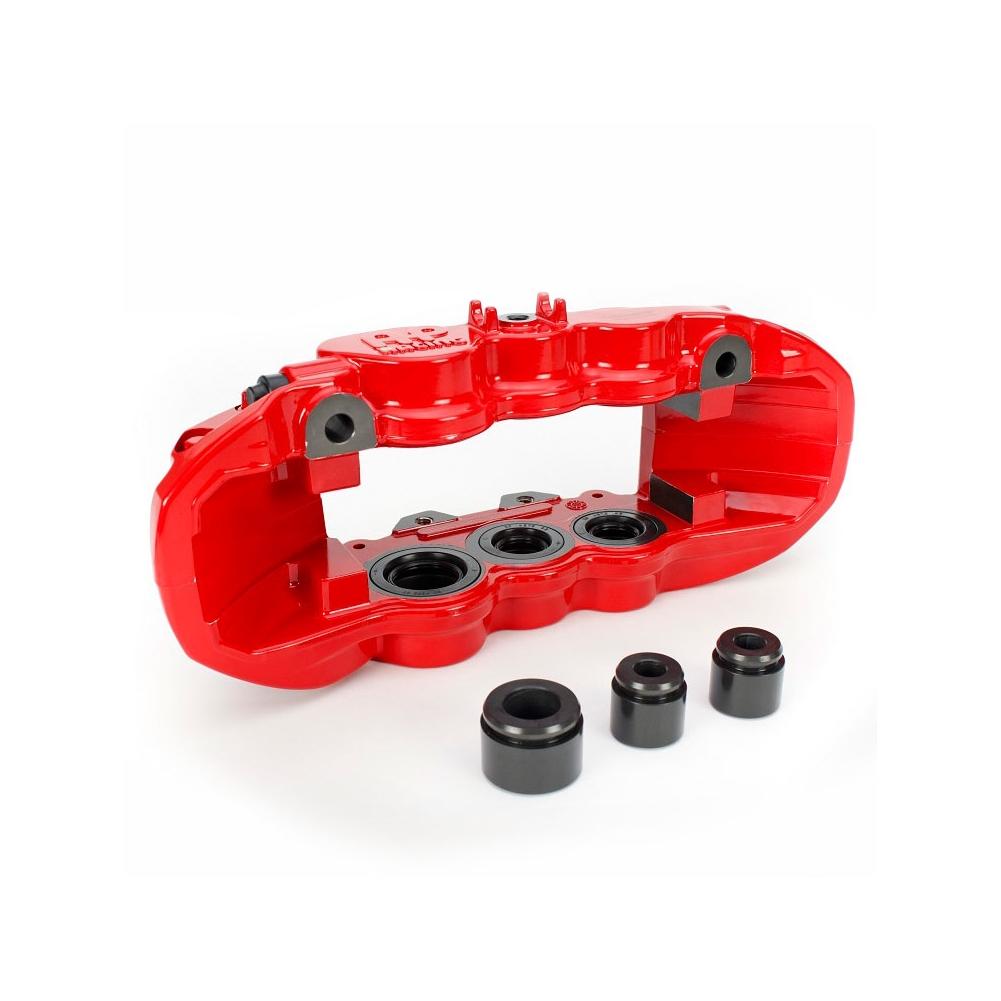

AP Racing Radi-CAL calipers
AP Racing high performance rotors (available as either J hook rotors or cross-drilled and slotted rotors)
High performance brake pads
Billet aluminum mounting hats and full floating hardware (pre-assembled for easy installation)
Billet aluminum mounting bracket
Braided stainless steel brake lines with correct conversion fittings when necessary
Detailed installation instructions

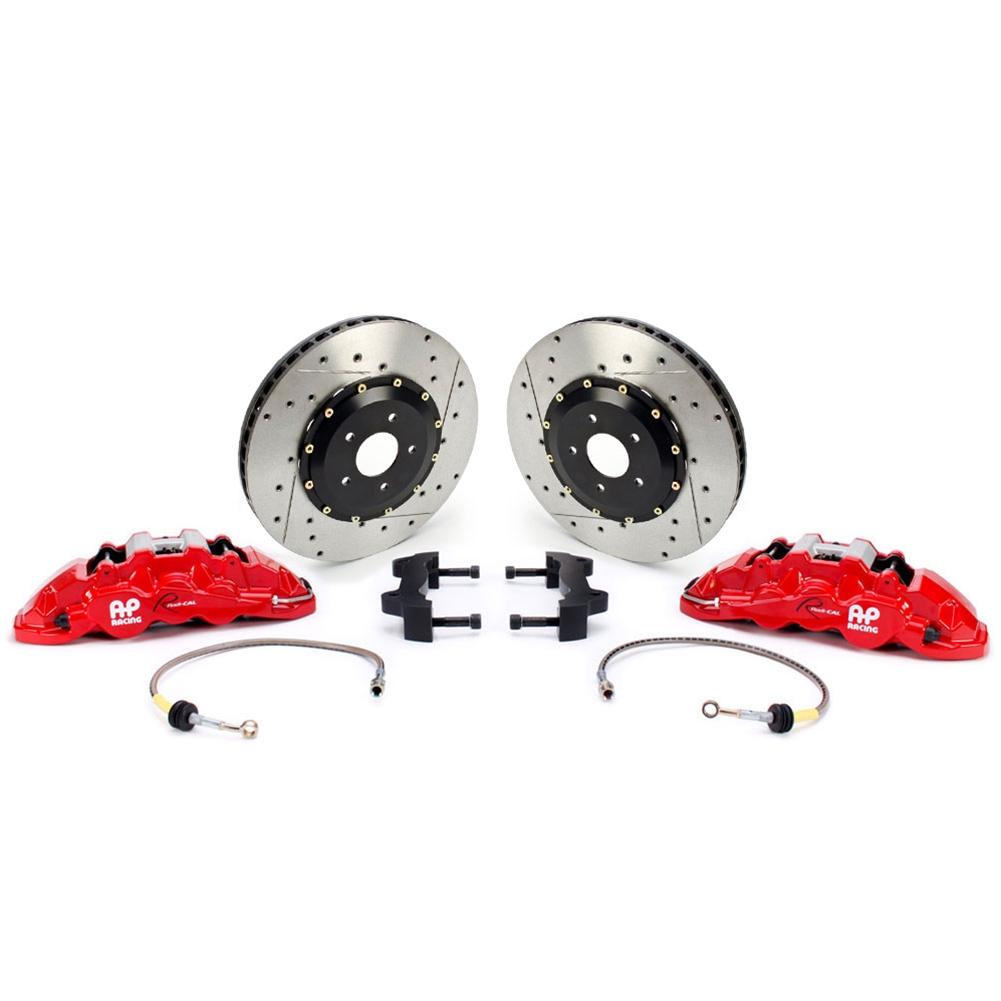

The Brake Systems comes complete with: AP Radi-CAL Forged Calipers, 2pc Full Floating AP Racing Rotors, Goodridge SS Brake Lines, Performance Brake Pads, Billet Hats and Brackets, and All Mounting Hardware.

Features:
Front 6-Piston (Forged)
• 370x36mm
• 2pc Floating
• Rear 4-Piston (Forged)
• 360x28mm
• 2pc Floating

There are many good reasons why cross-drilled and slotted rotors have been recognized as the highest performing brake rotors available. Quite simply, they are. The cross-drilled holes aid in cooling and allowing the rotor to breath while at the same time add additional bite between the rotor and pad. When manufacturing a cross-drilled slotted rotor it is extremely important that the rotor be designed to be finished with this pattern. This means the drilled holes must line up with the internal cooling vanes so as to not affect the overall structure of the rotor.

Specialized bits are used to chamfer the edges of the holes to minimize the potential of stress fractures from forming on the hole's leading edges.

Additionally the holes must be finished with a chamfered edge to prevent stress fractures from forming on this leading edge. By giving the hole a radius edge it allows the iron to expand and contract naturally without creating a possible stress point.

While cross-drilled rotors and slotted rotors will offer the best performance, they can also wear faster than other rotor machined patterns. In most cases the wear differences between rotor finishes is negligible and most people won't notice the difference. Both surface designs will sweep the pad face completely to allow for out gassing to keep the pad material surface fresh and at optimal performance levels.

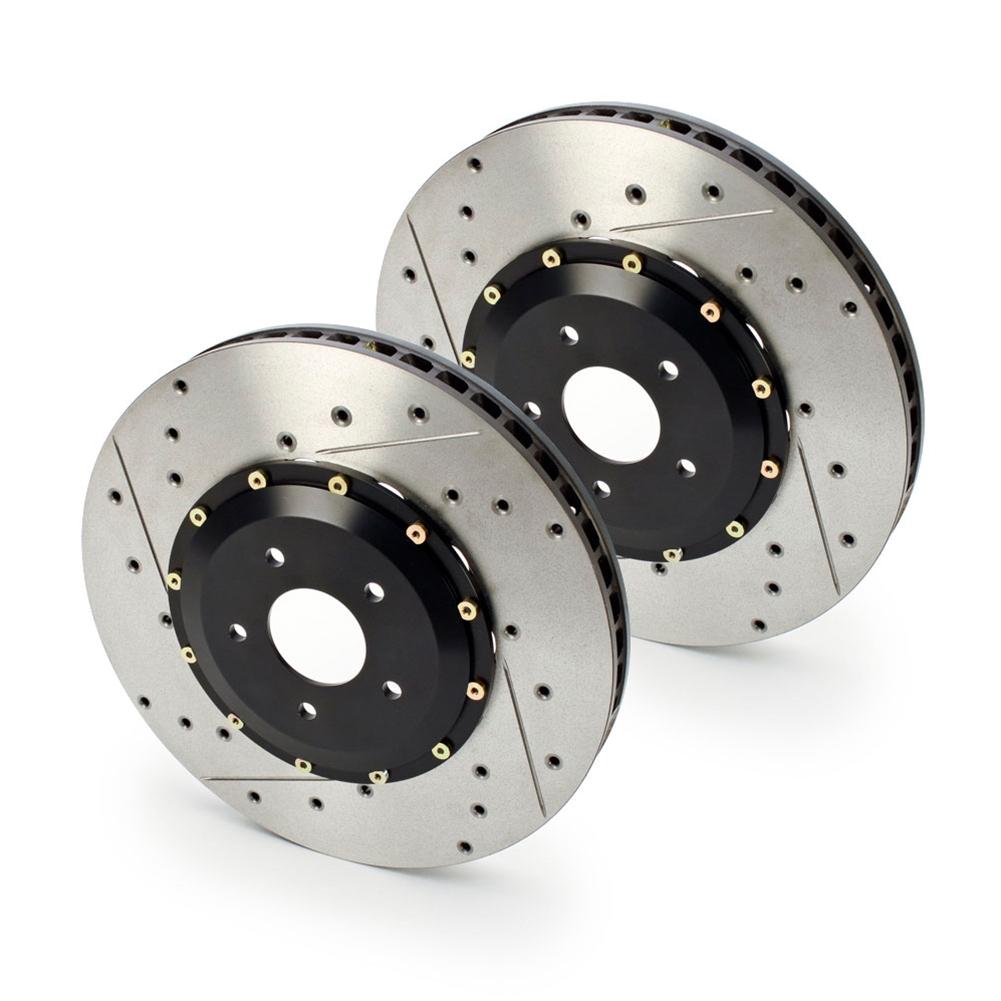

These high performance 2-piece cross-drilled & slotted rotors are cad-designed for a perfect brake pad sweep and alignment with internal cooling vanes.

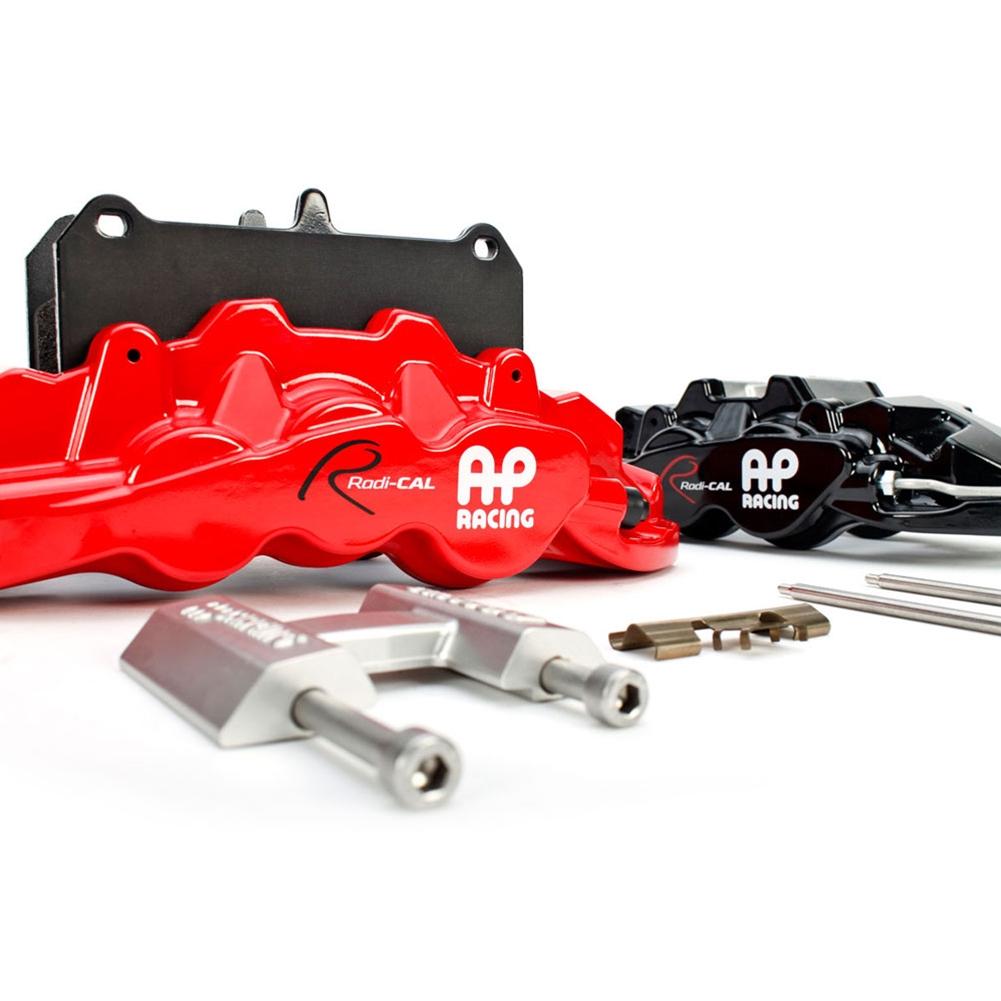

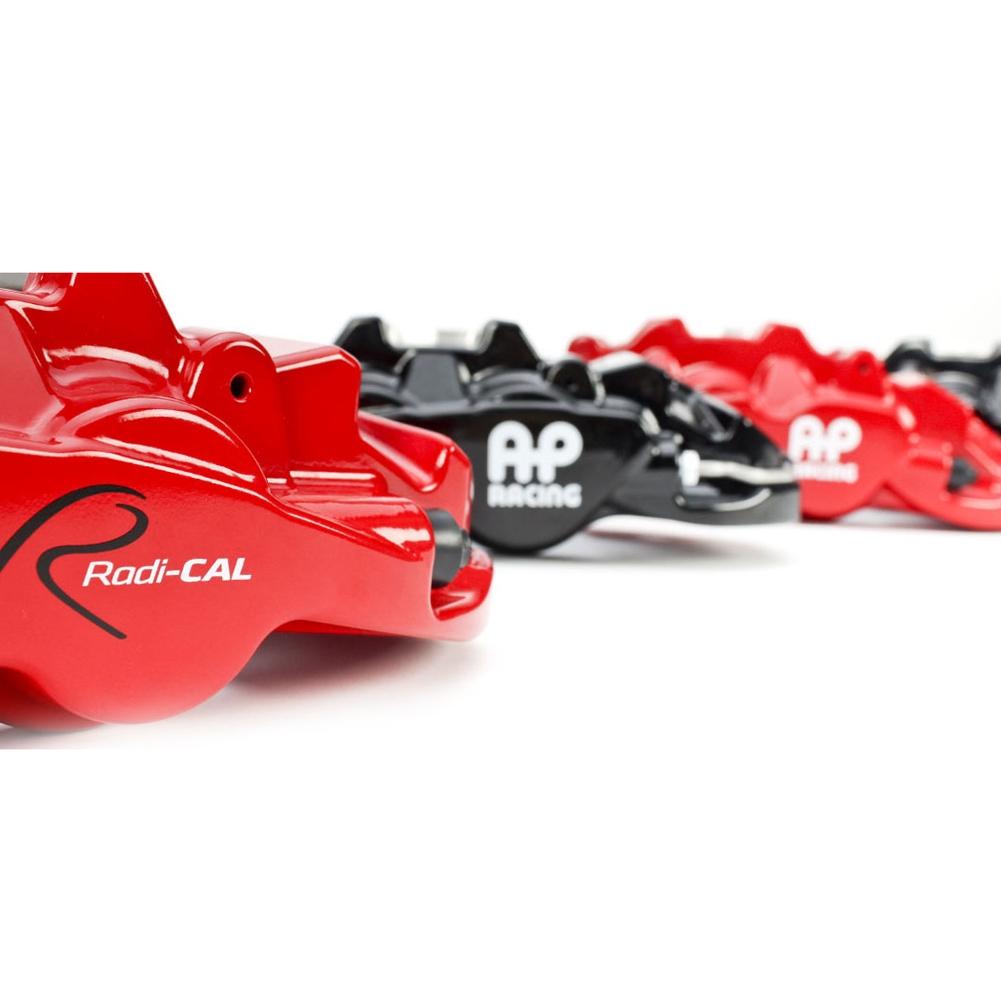

Derived from AP Racing's patented and widely successful race Radi-CAL caliper and after 7 years of development, AP Racing has released their new pressure forged aluminum Radi-CAL caliper line validated for high performance road use and weekend track use. Using the latest FEA (finite element) analysis software and brake dynamometer testing, it was designed to implement the latest technologies learned through 40+ years of highly successful motorsports participation and an unparalleled 700+ F1 Grand Prix victories.

AP Racing pressure forged aluminum caliper bodies are tested at over 500,000 cycles of pressure and torque to meet AP Racing's stringent OE and high performance road use validation testing to ensure maximum stiffness and durability required for use on road registered vehicles. The forged aluminum process was chosen as it offers a 20% stronger and lighter caliper than similarly sized units using a casting process. These larger, lightweight AP Racing calipers replace the typical heavy cast iron OE calipers that are designed for low cost and little regard to high performance driving.

The opposed piston design guarantees maximum stiffness for better pedal feel and immediate braking action from the drivers input. Four piston and six piston designs allow a larger pad area to be used which decreases heat at the friction point between the pad material and disc surface while maintaining the same brake torque. This single detail increases both rotor and pad service life. Additionally, a larger caliper aids in braking performance by acting as a more efficient lever on the rotor. This in turn applies more torque to the rotor thus increasing the force applied to the rotor.

By controlling the operating temperature caused by the friction between the pads and rotor we are able to better manage the performance of the big brake kit. Controlling the temperature in a braking system is one of the biggest goals when designing a kit. A vehicle will create the same amount of heat when stopped from the same speed, the brake component choices will control how that heat is managed. Both pads and rotors have optimum operational temperature ranges. For a street car, we must make sure the brakes work flawlessly at sub-zero temperatures but still offer excellent performance when being pushed on a race track and being subjected to extreme temperatures. All calipers are double sealed to protect piston bores and pressure seals from road debris. High temperature seal material is used to ensure safety at high temperature use. These seals are designed to minimize off brake pad drag on the disc which will increase pad and disc life.

The Radi-CAL caliper is designed with differential piston sizing that minimize pad taper by equalizing piston pressure to the pad backing plate. The caliper pistons are hard anodized aluminum, lightweight and the most efficient material for insulating brake fluid from heat. An easily removable forged bridge support is implemented for quick pad changes without removing the caliper and adds additional strength to the caliper mouth for greater stiffness.

Radi-CAL calipers are designed for larger, wider and taller annulus discs to increase thermal capacity, reduce disc surface temperatures and increase pad and disc life. Directionally loaded anti-rattle springs are featured to avoid pad knock or movement that is normally associated with race calipers. Radi-CAL calipers are hard anodized and then painted with high temperature paint for great looks and corrosion protection.
