Corvette Supercharger Kit - Magnuson TVS2300 : 2005-2007 C6 LS2

Corvette Supercharger Kit - Magnuson TVS2300 : 2005-2007 C6 LS2

Name: Corvette Supercharger Kit - Magnuson TVS2300 : 2005-2007 C6 LS2
Brand: Magnuson Superchargers
SKU: 31126160
Price: 7450.95 USD
Availability: OutOfStock

Corvette Supercharger Kit - Magnuson TVS2300 : 2005-2007 C6 LS2

See all reviews

$7,450.95

Product variants

Availability: Usually Ships In 3-5 Days Brand: Magnuson Superchargers SKU: 31126160

Payment Methods:

Description

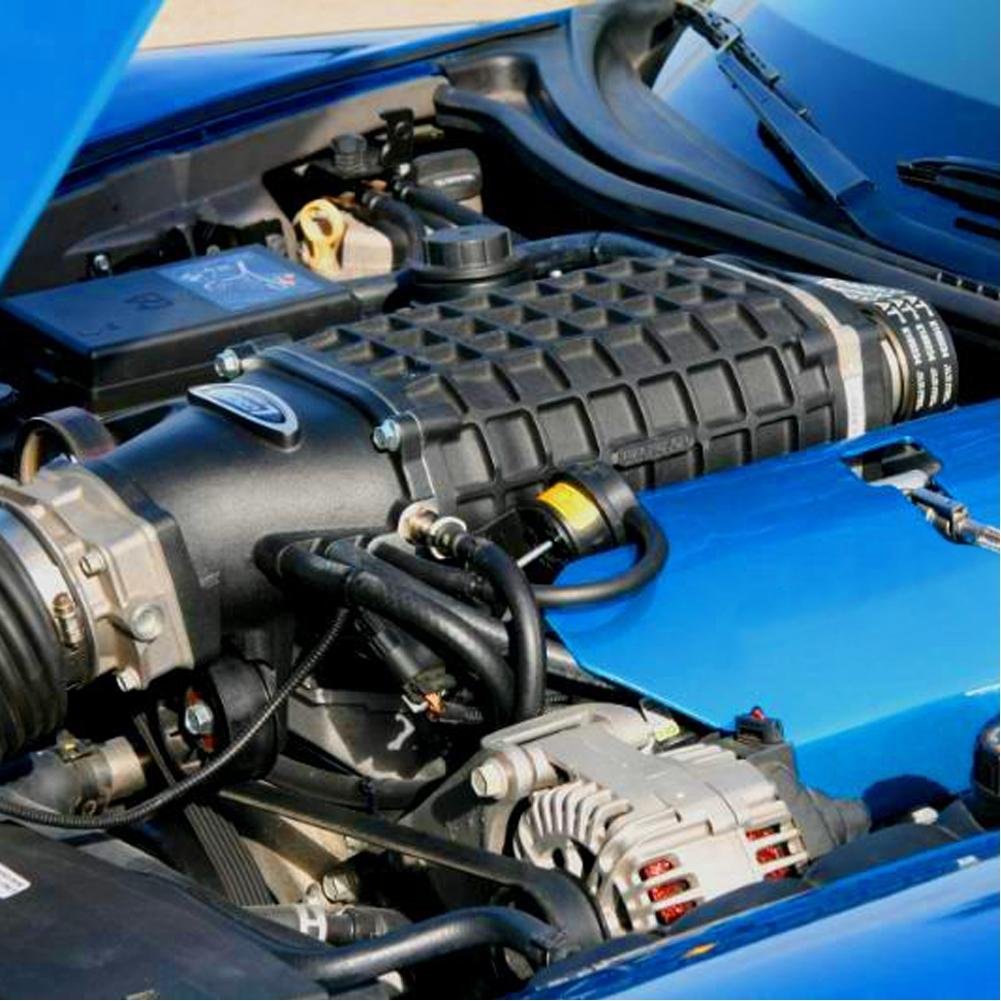

Unlock the potential of your LS2 6.0L Corvette C6 with Magnuson's MP2300 TVS Supercharger Kit. Available for the 2005-2007 C6 Chevrolet Corvette, this bolt-on supercharger is designed to deliver maximum performance while retaining factory-like drive-ability and reliability. Producing 6 pounds of boost, the Magnuson TVS2300 Hybrid Roots Style Supercharger delivers power gains of around 120 hp and 120 ft-lbs of torque at the rear wheels! But peak numbers cannot tell the whole story. "Under the curve" power is significantly enhanced delivering near instantaneous boost and torque upon demand when it really counts.

Inside of the supercharger manifold, a big liquid-to-air intercooler keeps your Intake Air Temperatures in check and provides consistent and repeatable performance. Combine that with the front-mounted heat exchanger, electric water pump, and intercooler coolant reservoir and you have a supercharger system that has IATs that are typically only 20-40 degrees (Fahrenheit) over the ambient temperature.

Maximizing your engine's efficiency during cruising is the job of the supercharger's integrated bypass valve. This vacuum operated system allows air to bypass the supercharger and the rotors to “free-spin" under light engine loads. During this situation the parasitic loss of the supercharger system is essentially negated taking less than one-third of a horsepower to turn the rotors. This bypass valve also allows your supercharged vehicle to maintain stock-like drivability and fuel economy - giving you a package that delivers power without compromise.

Down to the smallest part, our MagnaCharger line of bolt-on supercharger systems are engineered as a complete package. The supercharger, supercharger intake manifold, inlet, pulley, fuel injectors, fuel rails, front and rear fuel crossovers, and intercooler come pre-assembled to make installation simple and easy while the accessory box is organized into individual sub-assemblies to help ensure that you don't lose track of parts in the middle of your install. All of the hardware needed for a full and complete install is also included so you won't be running to the local parts store in the middle of your installation. In addition, our full color, step-by-step Installation Manuals will walk you through the install process with exacting attention to detail.

Magnuson's MP2300 TVS supercharger utilizes EATON's latest 6th Generation supercharger rotor technology found in such industry leading performance vehicles as the Corvette ZR-1, the Cadillac CTS-V, and the 2013 Mustang GT500. These Twin Vortices Series Superchargers feature a pair of four-lobe, high-helix rotors with 160-degrees of overall twist that are housed in Magnuson's patented high-flow housing. This highly efficient package requires less power to drive, delivers cooler discharge temperatures, and is much quieter than many of its competitors. These superchargers are all manufactured in our TS16949 certified facility – the highest ISO OEM quality certification standard in the market. Supported by a 3-year/36,000 mile warranty this supercharger is built to last. It is also designed to be nearly maintenance free so you won't need to worry about anything once it is installed.

MAGNUSON TUNE IS FOR STOCK CORVETTES WITH MAGNA-CHARGER SUPERCHARGER ONLY. CARS WITH PERFORMANCE MODIFICATIONS CANNOT BE TUNED BY MAGNUSON. CUSTOM TUNING WILL BE REQUIRED, BY YOUR LOCAL TUNER.

Fitment
2005-2007 Chevrolet Corvette 6.0L LS2

Finish
Black

Features
TVS2300 Hybrid-roots supercharger.
Installs in one day.
100% complete bolt-on system.
More power in a smaller package.
180deg. rotation of the supercharger provides a straight airflow path for maximum power and efficiency.
Internal Bypass Valve virtually eliminates parasitic loss (uses less than 1/3 of a horsepower at 60 mph).
Delivers a proven increase in real world "under the curve" power.
High thermal efficiency.
2.4 pressure ratio capability.
High helix four-lobe rotors with 160deg. of twist.
Redesigned inlet and outlet ports.
Improved air-handling characteristics.
Acoustically designed for noise and vibration reductions.
Utilizes all factory "push-lock" connectors

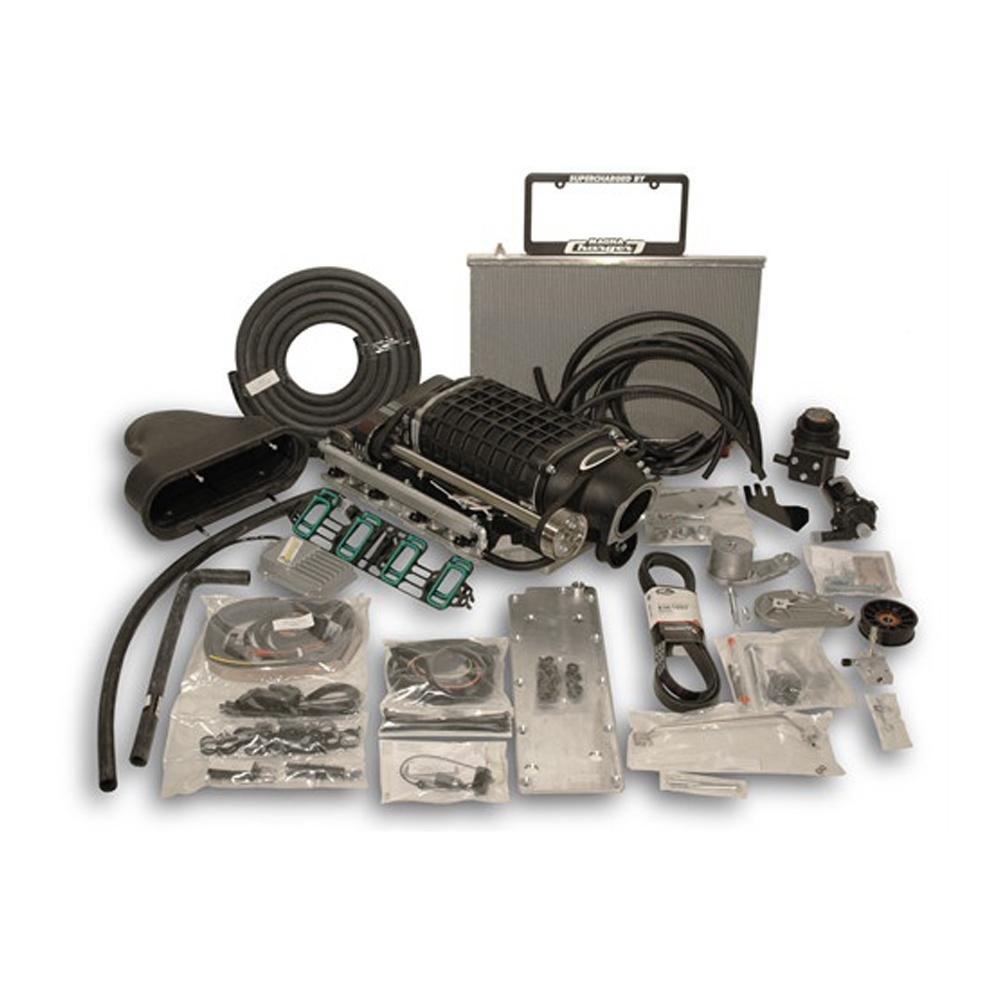

Included Components
6th Generation MP2300 TVS Supercharger with integral bypass valve.
Patented cast-aluminum high-velocity-port intake manifold.
Liquid-to-Air Intercooler.
Extruded aluminum high flow fuel rails.
8 high-flow fuel injectors.
Front and rear fuel crossovers.
Large front-mounted heat exchanger.
Padded Box and UPS 2-Day shipping label for computer return.
All necessary fittings, lines, belts, and hardware required.

Warranty
Standard 3-year/36,000 mile Warranty on the supercharger hardware
Standard 1-year Limited Warranty on electronics
Optional 3-year/36,000 mile, 5-year/60,000 mile or 5-year/100,000 mile Powertrain Warranty (additional cost)

Maintenance
Only requires an oil change every 80,000-120,000 miles.

Emissions Status
Not legal for sale on pollution controlled vehicles.

Tools Required
Metric wrench set
1/4in. - 3/8in. and 1/2in. drive metric socket set (Standard andamp; Deep)
3/8in.and 1/2in. drive foot-pound and inch-pound torque wrenches
Belt tensioner wrench
Phillips and flat-head screwdrivers
1/2in. breaker bar
Fuel line quick disconnect tool (included in kit)
Small or angled 3/8in. drill
Drain pan
Hose cutters
Hose clamp pliers
Safety glasses
Torque angle meter
Hammer
Compressed air
Blow gun air tool
Metric Allen socket set 3/8in. drive
Shop vacuum cleaner
Blue Loctite
Right Angle drill for pinning crank pulley (when required)
Helpful Tool: Air or electric impact wrench

Average Installation Time
10-12 Hours

Size and Weight
Number of Boxes: 2
Box 1 Size: 34"x20"x16"
Box 1 Weight: 85 lbs.
Box 2 Size: 27"x14"x18"
Box 2 Weight: 40 lbs.

NOTE: A Custom raised hood is required with this supercharger.
